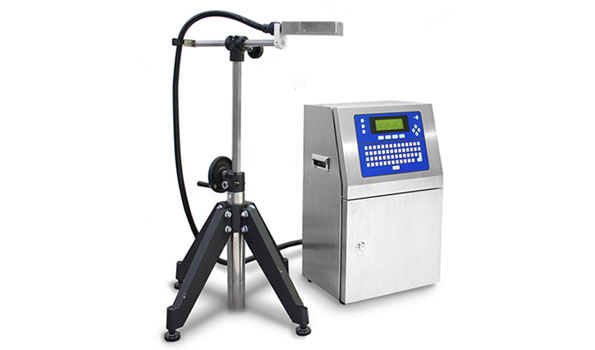

KGKJet CCS-R – Imprimante à jet d’encre avec un boîtier en acier inoxydable solide.
KGKJet CCS-R
Imprimante jet d’encre dévié continu (CIJ)
Corps en acier inoxydable.
Peut être utilisé sans souci même autour de l’eau.
Utilisation simple.

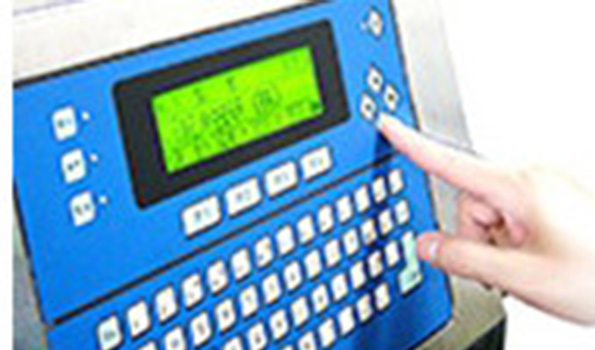

Comporte un clavier complet pour la facilité d’utilisation.
Imprimez même dans les petits espaces avec la tête d'impression compacte.
Imprimez sur une large gamme d’objets de formes différentes.
Plus d’informations ou demande de démonstration ? 0520 74 73 53
Spécifications techniques
| Printing system | Continuous |
| Corresponding nozzles | 40µm / 50µm / 60µm |
| Character height | 0.8-5mm (40-µm nozzle), 1-10mm (50-µm nozzle), 2-10mm (60-µm nozzle) |
| The highest printing speed | 2666 (40-µm nozzle) |
| [characters/second] | 2041（50‐µm nozzle) |
| ( 5×5 dot fonts and 1character between) | 1780（60‐µm nozzle) |
| Printing objects | Metal, glass, plastic, film, rubber, etc. |
| Ink | Dye: black, red, blue, and fluorescence (stealth) |
| * Since we have exclusive various inks in stock, please consult. | |
| Number of printed stages and the dot | [1～4stages] 5×5 |
| configuration example (length × width) | [1～3stages] 7×5, 7×8 |
| [1～2stages] 9×7, 9×9, 10×8, 12×10 | |
| [1stages] 16×12, 16×16, 24×18, 24×24 | |
| Message registration characters number | Maximum of 512 characters |
| Font | Mincho, Gothic font |
| Character type | Alphabet (upper case/lower case), numbers, symbols, Japanese hiragana, katakana, |
| kanji (JIS class 1and 2), Simplified Chinese (GB2312), the user characters | |
| Date time (expiration date) | Chritian year, traditional Japanese calender year, year/month/day, day of the week, |
| Printing function | time (12 / 24H format), Julian date, serial week number in a year, early/middle/ |
| late period of the month (variable period setting), AM / PM, character assignment | |
| function (to assign year, month, day, hour, minute, second to a number of 1digit of | |
| other characters. | |
| Numbering function | Up to 8 digits, any initial value setting, up / down, carry of digit |
| (can be set to 1 count in the work number from 1 to 9999), | |
| zero suppression function (replacing the zero of the high-order digits with space), | |
| numbering character assignment function (can assign to non-numeric characters). | |
| Bar code printing function | ITF, Code39, NW-7, JAN, Code128 |
| Message registration number | Maximum of 50 message |
| Communication function | RS-232C 1CH maximum 76,800bps |
| Head cable length | 3.5m |
| Use environment (temperature, humidity) | 0-40°C (it changes with ink types), 10 to 85% (however, non-condensing) |
| Power supply | For 100V: AC100V 50/60Hz 60W (80VA) Grounded type 2 poles plug cap |
| For 220V: AC220V 50/60Hz 70W (100VA) GB specification plug cap | |
| For 230V: AC230V 50/60Hz 70W (100VA) | |
| The source of dry air | For the air purges in the print head |
| (For the air purges in the print head) | Fit tube shape: o6mm or 8mm |
| Air source pressure: 0.8Mpa or less (air ventilation set included with the unit) | |
| Air flow rate: less than 10L / Min | |
| Installation area (width x depth x height) | Main part: 400Wx300Dx674H (excluding projection) |

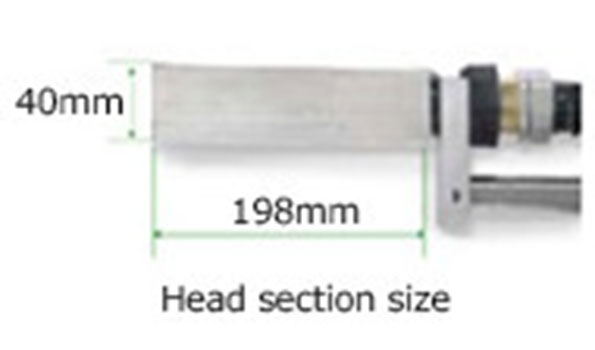

| Head: 40Wx199Dx40H | |
| Mass | 30Kg |
| Ground | D type grounding |
