KGKJet CCS2000 – Une imprimante à jet d’encre haute performance à faible coût.
KGKJet CCS2000
Imprimante jet d’encre dévié continu (CIJ)
Nous avons pensé à la convivialité.

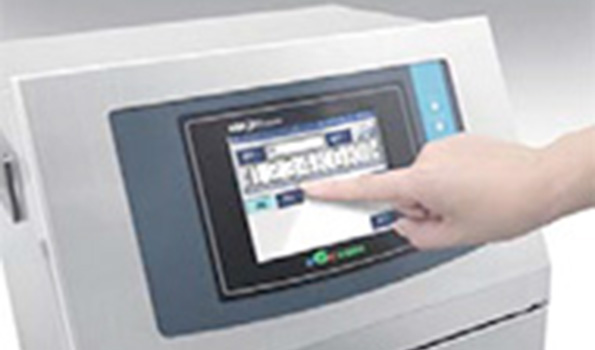

Comporte un panneau polychrome de 5,7 pouces avec une facilité d’utilisation et une visibilité bien pensées.
Empêche l'insertion incorrecte de l'encre ou du solvant.

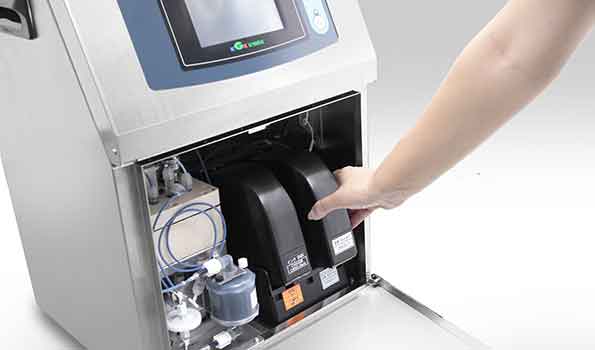

Utilise un système de cartouche pour empêcher l’insertion incorrecte d’encre et de solvant.
Impression de haute qualité réalisée.

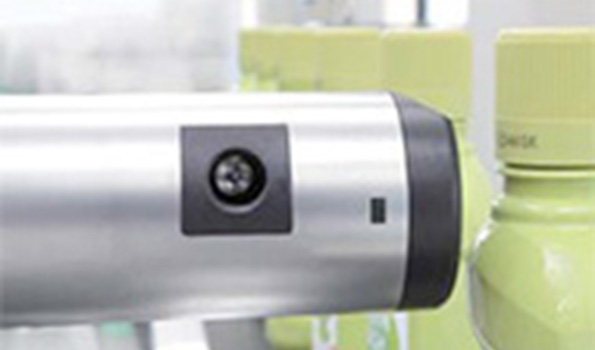

Impression de haute qualité avec une buse en fluor qui empêche la buse de se salir.
Plus d’informations ou demande de démonstration ? 0520 74 73 53
Spécifications techniques
| Printing system | Continuous (charging control system) | Dustproof waterproof | Nothing |
| RoHS | Support | Screen size | 5.7” color LCD / touch panel |
| Character height | 1〜10mm | Character height | 0.8-5mm (40-μm nozzle), 1-10mm (50-μm nozzle), 2-10 (60-μm nozzle) |
| The highest printing speed [characters/second] ( 5×5 dot fonts and 1character between) | 1780-3200 (it changes with a nozzle type and ink type) | Character type | Alphabet (upper case/lower case), numbers, symbols, Japanese hiragana, katakana, kanji (JIS class 1and 2), the user characters |
| Message registration characters number | Maximum of 4096 characters | Date Time (expiry date) Printing function | Chritian year, traditional Japanese calender year, year/month/day, day of the week, time (12 / 24H format), Julian date, serial week number in a year, early/middle/late period of the month (variable period setting), AM / PM, shift code, character assignment function (to assign year, month, day, hour, minute, second, day of the week) to a maximum number of 4 to 15 digits of other characters. |
| Numbering function | Up to 10 digits, any initial value setting, up / down, carry of digit (can be set to 1 count in the work number from 1 to 9999), zero suppression function (replacing the zero of the high-order digits with space, or to eliminate it), numbering character assignment function (can be assigned to non-numeric characters), advance setting numbers (2 to 36 decimal) can be divided (insert any of the characters between the numbers). | Distance printing function | Up to 10 digits, can be divided (insert any of the characters between the numbers). |
| Bar code printing function | ITF, Code39, NW-7, JAN, Code128 | Two dimensional code printing function | QR Code, data matrix |
| Kana-to-kanji conversion | Yes | External connection | Signal light, RS-232C, LAN, encoder, UPS, USB memory |
| Data input | Touch panel, RS-232C communication | Communication function | RS-232C 1CH maximum 115,200bps, Ethernet |
| Head cable length | 3.5m | The source of dry air | “Fit tube shape: ∅6mm or 8mm |
| Air source pressure: 0.8Mpa or less (air ventilation set included with the unit) | |||
| Air flow rate: less than 10L / Min” | |||
| Installation area (width x depth x height) | Main part: 370Wx330Dx535H (excluding projection) | Use environment (temperature, humidity) | 0-40℃(it changes with ink types), 10 to 85℅ (however, non-condensing) |
| Head: ∅49.2mmx197mm | |||
| Power supply | AC90- 264V(t47- 63Hz),80W | Mass | 22 Kg |
| Ground | D type grounding |
